  • Maelstrom System Build

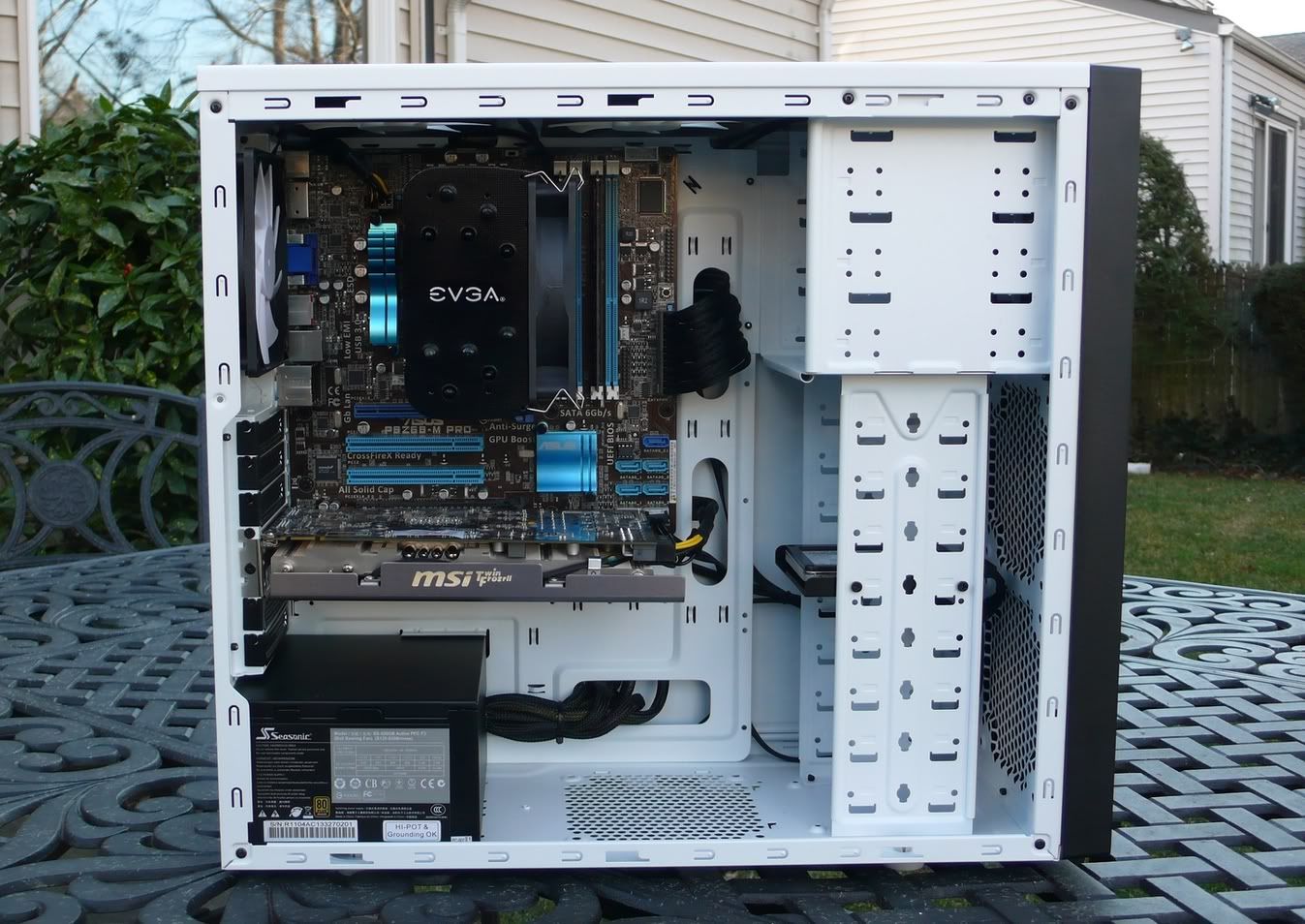

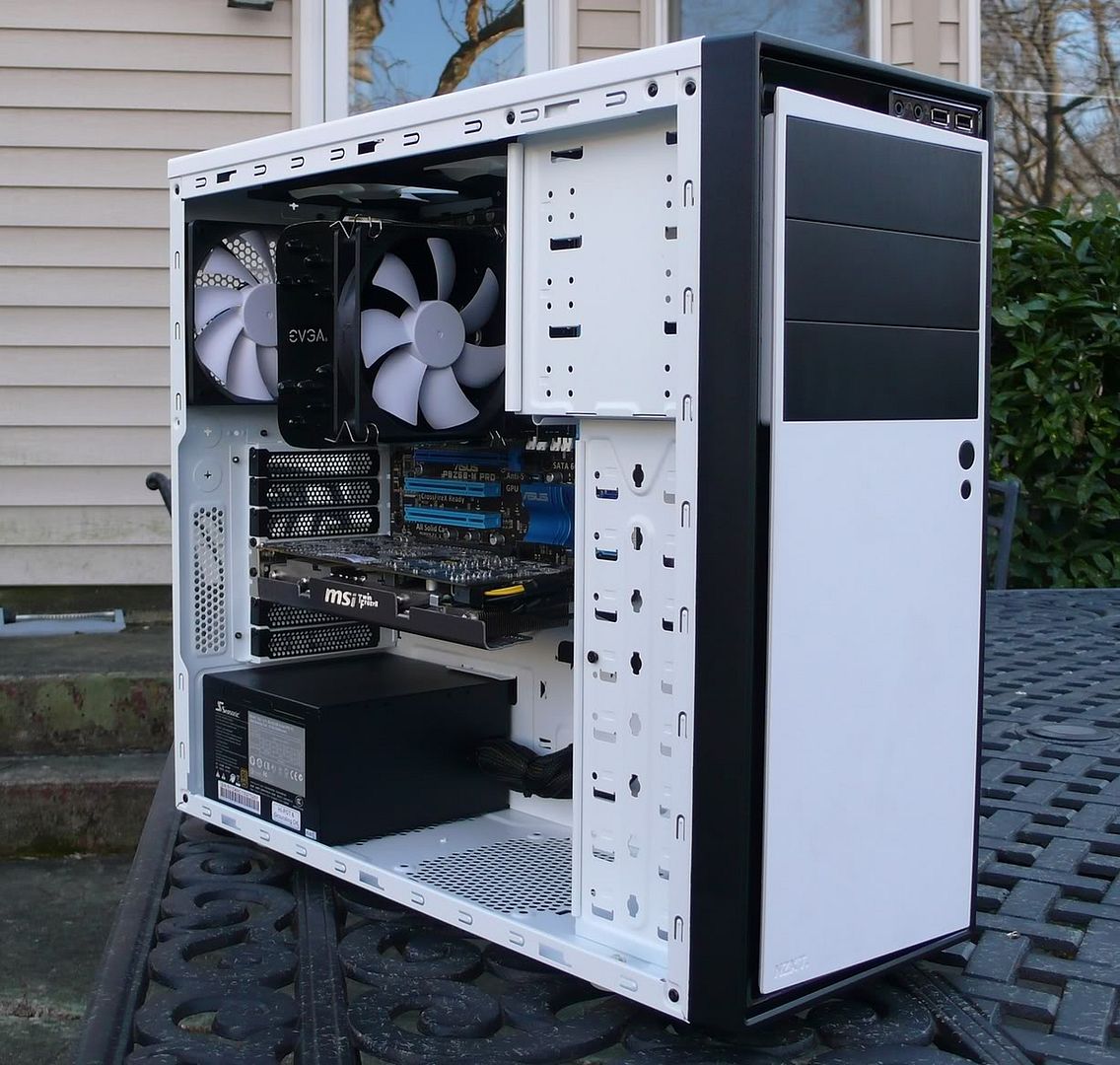

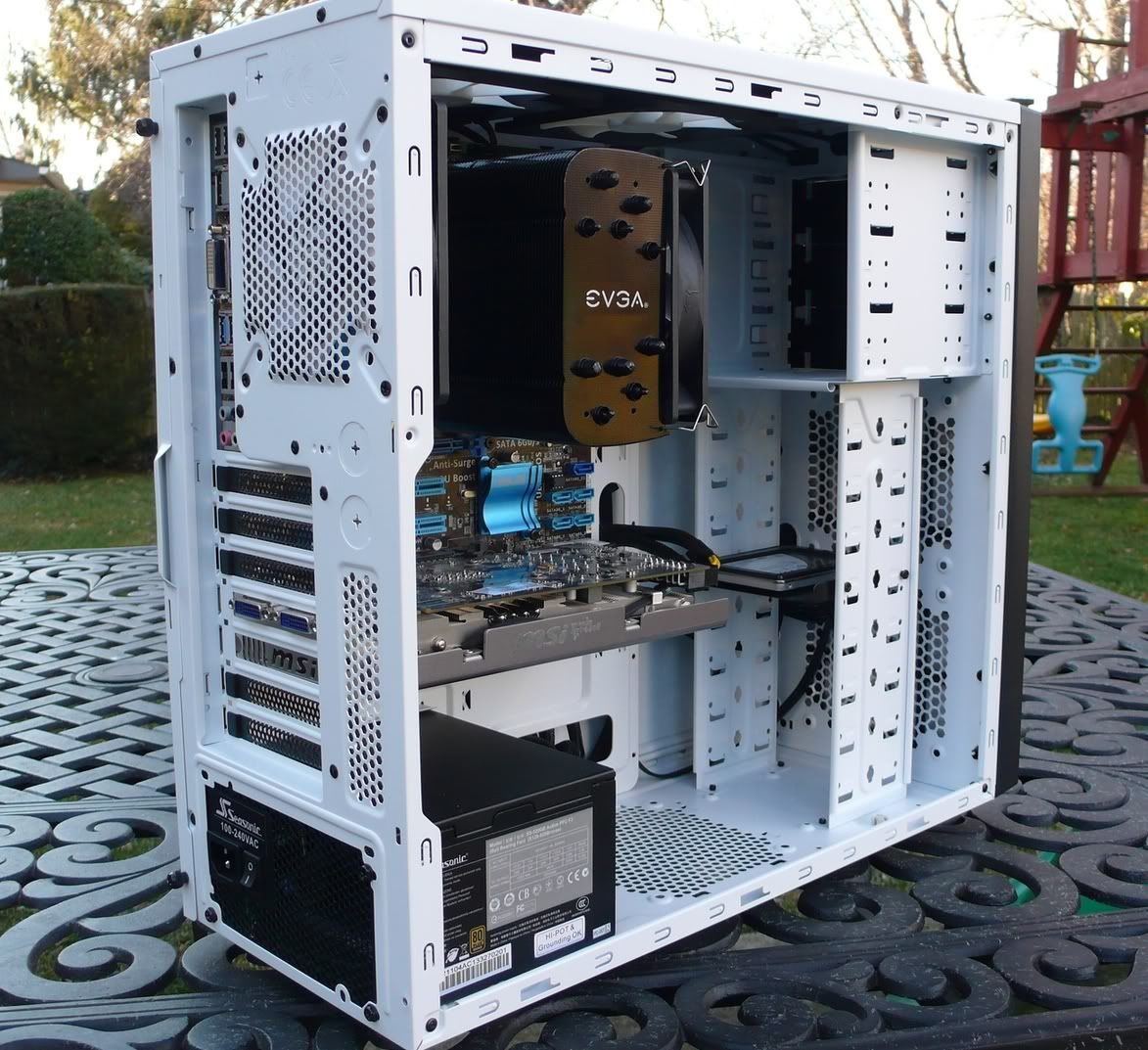

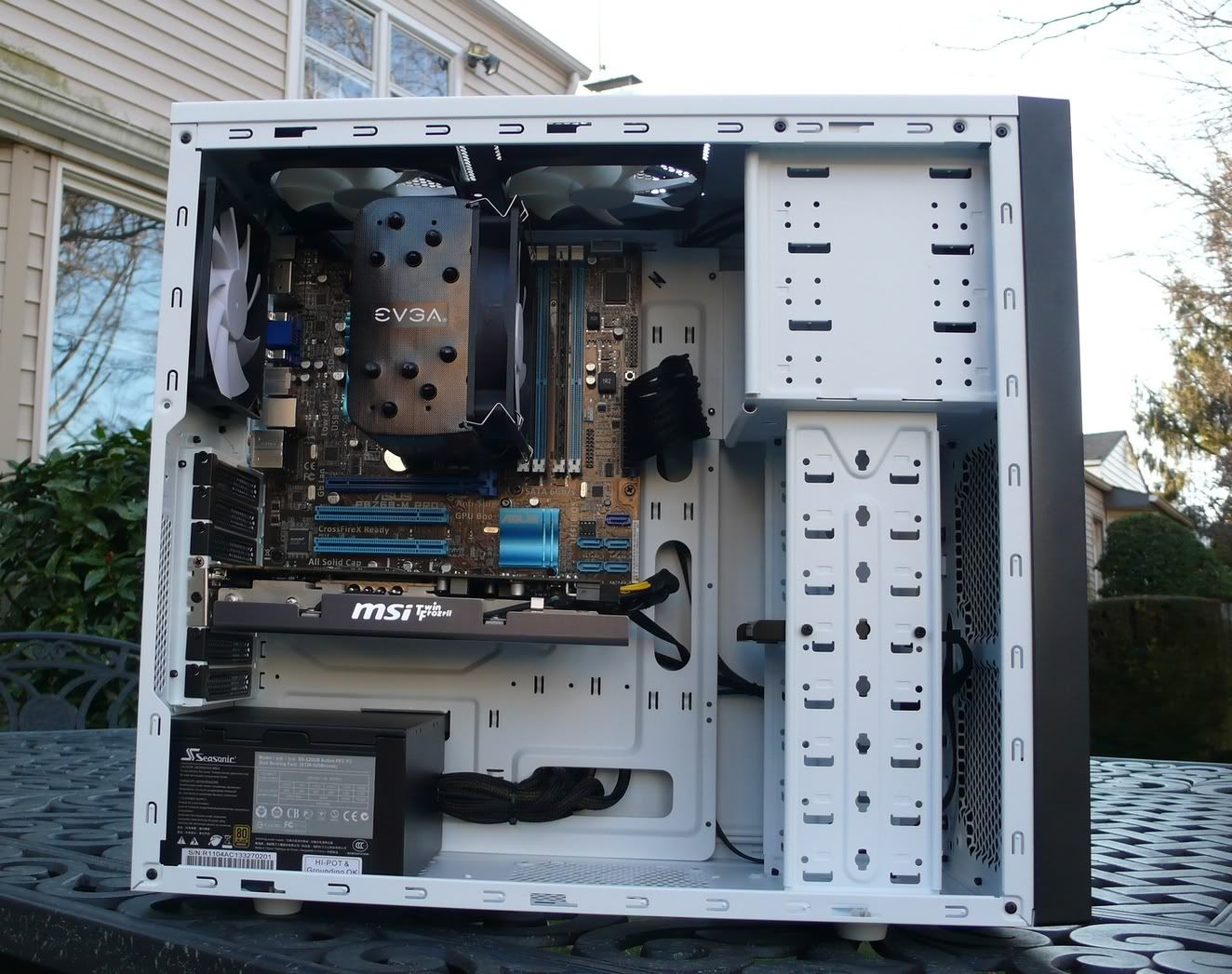

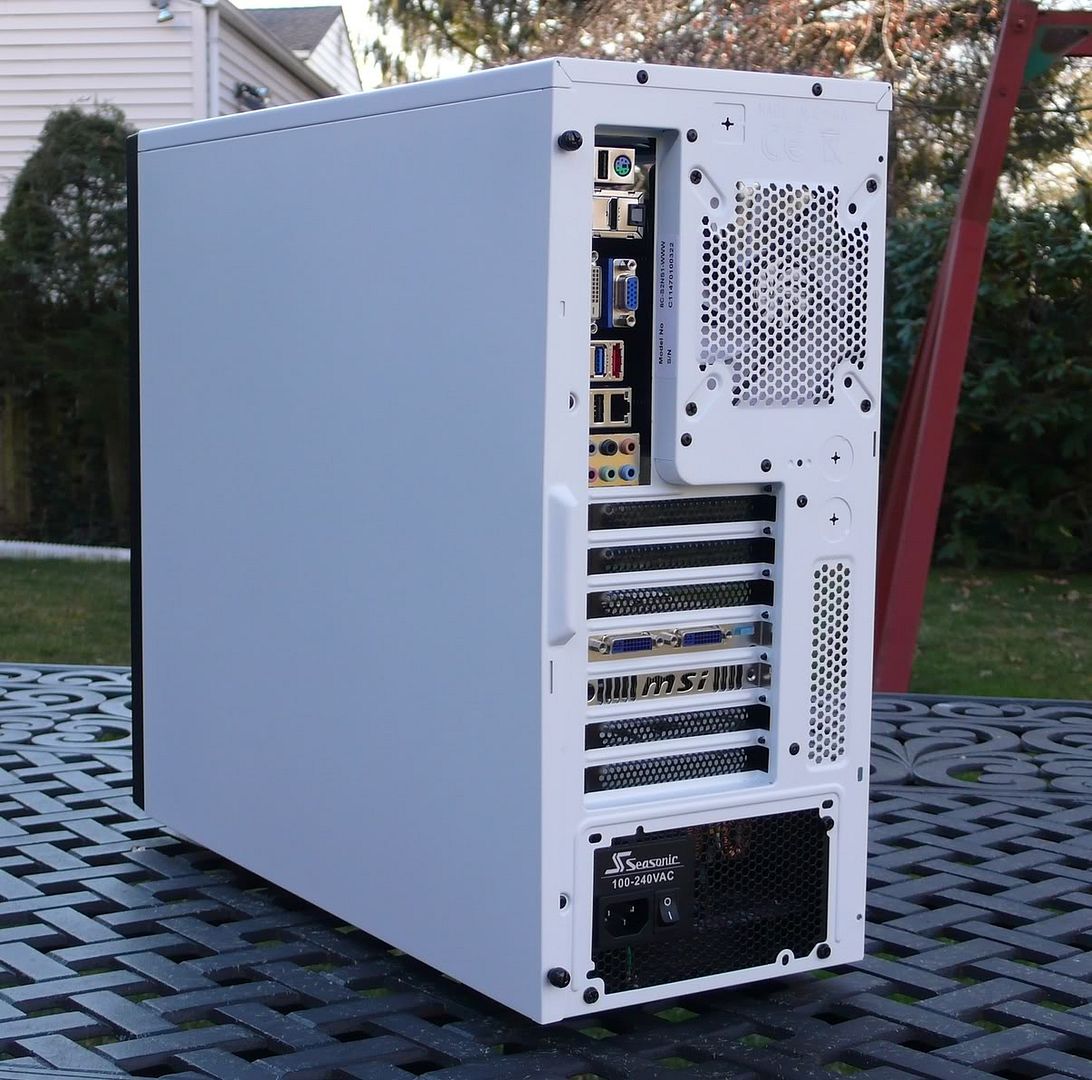

    This is a system that I built from spare parts lying around. Case is the NZXT Source 210 White, which is the same OEM design as the Bitfenix Shinobi. The three case fans are hardwired to 5v and there is a voltage reducer on the CPU fan line.















    Components:
    NZXT Source 210 White Case
    Seasonic S12 II 520W PSU
    Intel Core i5 2500K CPU
    ASUS P8Z68 Pro-M Mobo
    8gb G.Skill DDR3 1333 RAM
    MSI N460GTX Hawk 1gb GPU
    EVGA Superclock Heatsink w/ Fractal Design 120mm (undervolted)
    Intel SSD320 80gb SSD

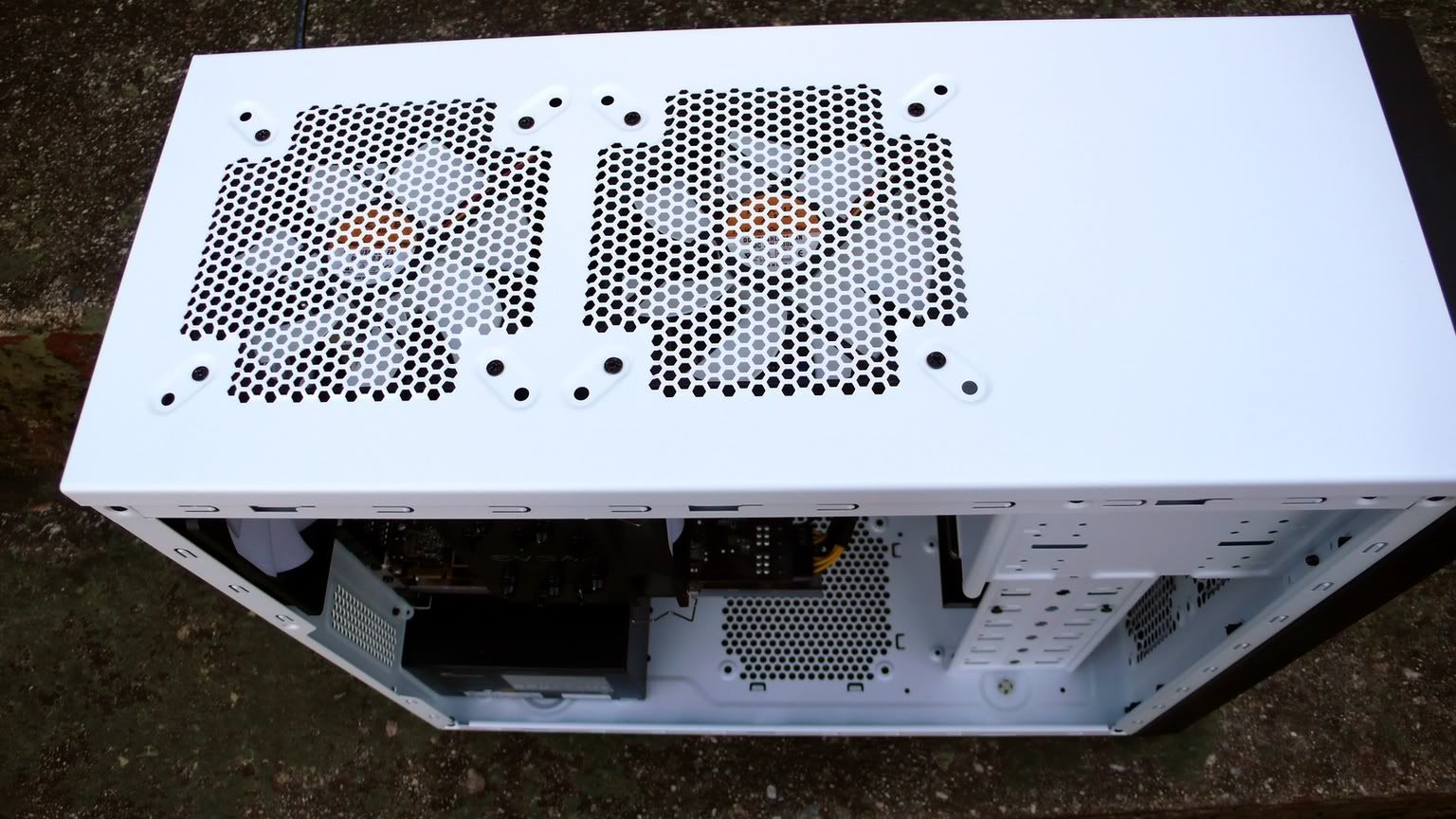

    1x NZXT 120mm rear exhaust and 2x Nexus Realsilent 120mm top exhaust all at 5v
    NZXT 24-pin Single Sleeved extension cable

    I highly recommend this case, its inexpensive and highly capable and expandable
    sigpic
    [SIZE="3"][B]
    "SANDY ELITE" - Intel Sandy Bridge 2500K w/ XSPC raystorm waterblock - ASUS P8P67 Pro B3- 8GB G.SKILL Sniper - Sapphire HD7970 w/ Heatkiller Core LC waterblock - Fractal Define R3 Black - Seasonic X460FL Passive - 2 Samsung SSD830 128gb RAID 0 - XSPC RX360 - XSPC Bayres w/ D5 pump - Rosewill Hyperborea fans - Dell U2713HM - Klipsch Promedia 2.1

  • #2
    That thing looks primo billd.
    Desktop: 27" iMac | Core i5-2500S | 12GB DDR3-1333 | Radeon 6770| 1TB HDD | 2560x1440 IPS LED | OS X 10.8 Mountain Lion
    Mobile: 13" MacBook Air | Core i5-3427U | 4GB DDR3-1600 | Intel HD4000 | 128GB SSD | 1440x900 IPS LED | OS X 10.9 Mavericks

    Tablet: 1st Gen iPad | 32GB | Redsn0w Jailbreak | iOS 5.1.1

    Phone: iPhone 4S | iOS 7

    [10:16 AM] DaSickNinja: I present to you all, a capital 7: &

    Comment


    • #3
      Originally posted by Simul4ti0n View Post
      That thing looks primo billd.
      Thanks. I wanted to try out those parts in a system and they go really well together.

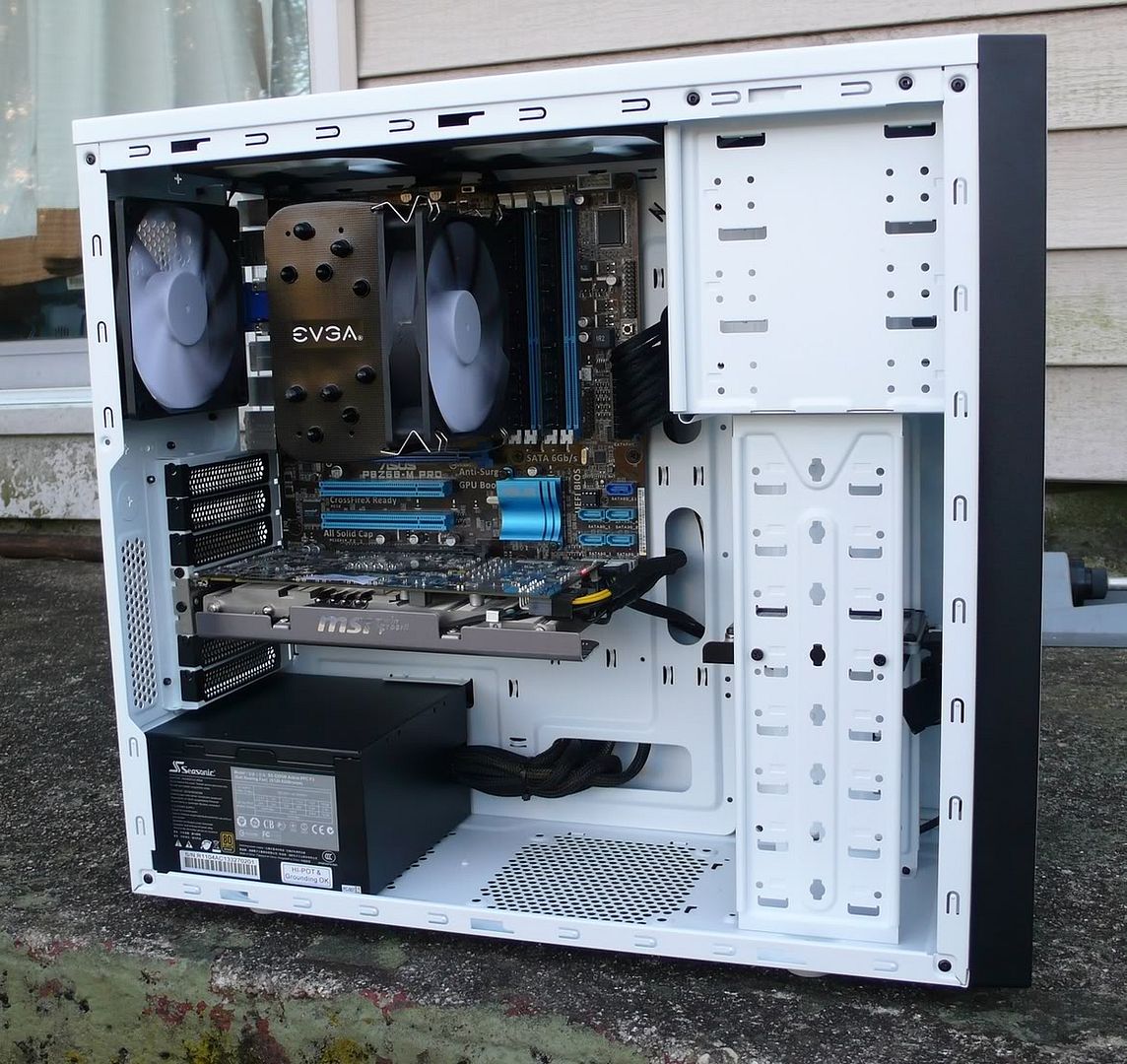

      One thing that I've never done before is to install the GPU in the bottom slot so that it overhangs the USB, front audio, sata cables. The USB and f-audio cables were run underneath the motherboard anyways.

      Basically, I was trying to create a super-clean system in a white case.
